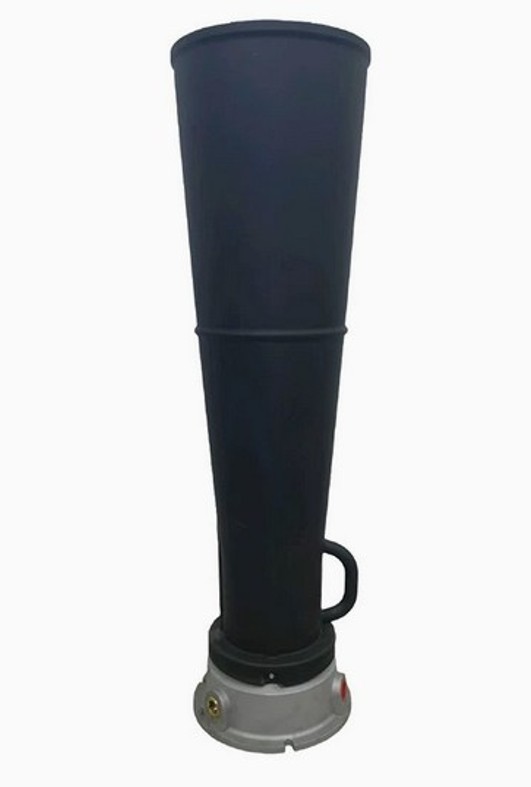

The 9SHP-B is a 9SHP variant with a polyethylene outlet cone instead of aluminum. The plastic body resists corrosive chemicals and solvents, making it the preferred choice for chemical plants and refineries where the blower is exposed to aggressive atmospheres.
4,653m³/h @ 40 psig
5,653m³/h @ 80 psig
PolyethyleneOutlet cone
ChemicalResistance
Key Specifications
| Model | 9SHP-B |
| Air Induction Ratio | 1:46 |
| Overall Dimensions | 1,070 mm length |
| Inlet Pressure | 0.4 – 1.0 MPa |
| Maximum Airflow | 5,653 m³/h max (at 80 psig) |
| Air Inlet Connection | G1" |
| Flange / Outlet | 310 mm outlet |
| Weight | 6.85 kg |
| Body Material | Aviation-grade Aluminum / Polyethylene |
Recommended for: Chemical plants, refineries, and tanks previously holding corrosive liquids.
Request Quote for 9SHP-B

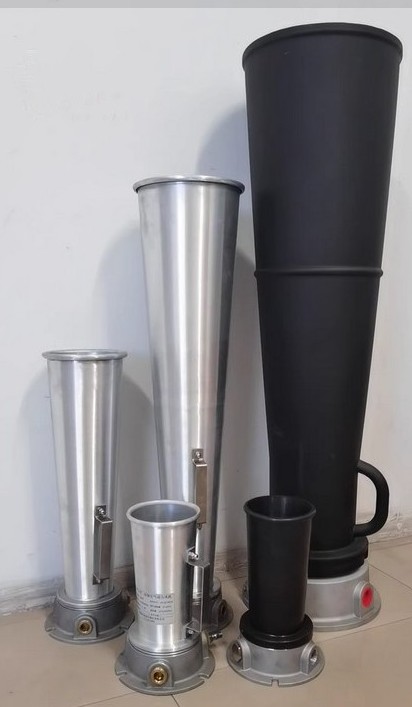

Complete Data Sheet — All SHP Models
The 9SHP-B row is highlighted for quick reference. All figures measured at inlet pressures of 40, 60 and 80 psig.
Total Air Output
| Model | Total Air Output at Inlet Pressure | ||
|---|---|---|---|
| 40 psig | 60 psig | 80 psig | |
| 3SHP | 810 cfm / 1375 m³/h | 988 cfm / 1678 m³/h | 1180 cfm / 2004 m³/h |
| 3SHP-B | 810 cfm / 1375 m³/h | 988 cfm / 1678 m³/h | 1180 cfm / 2004 m³/h |
| 5SHP | 908 cfm / 1520 m³/h | 1156 cfm / 1856 m³/h | 1360 cfm / 2258 m³/h |
| 7SHP | 1001 cfm / 1700 m³/h | 1267 cfm / 2151 m³/h | 1439 cfm / 2443 m³/h |
| 9SHP | 2740 cfm / 4653 m³/h | 2978 cfm / 5057 m³/h | 3329 cfm / 5653 m³/h |
| 9SHP-B | 2740 cfm / 4653 m³/h | 2978 cfm / 5057 m³/h | 3329 cfm / 5653 m³/h |
Air Consumption
| Model | Air Consumption at Inlet Pressure | ||
|---|---|---|---|
| 40 psig | 60 psig | 80 psig | |
| 3SHP | 22 scfm | 40 scfm | 58 scfm |
| 3SHP-B | 22 scfm | 40 scfm | 58 scfm |
| 5SHP | 22 scfm | 40 scfm | 58 scfm |
| 7SHP | 22 scfm | 40 scfm | 58 scfm |
| 9SHP | 68 scfm | 80 scfm | 108 scfm |
| 9SHP-B | 68 scfm | 80 scfm | 108 scfm |
Air Induction Ratio
| Model | Air Induction Ratio at Inlet Pressure | ||
|---|---|---|---|
| 40 psig | 60 psig | 80 psig | |
| 3SHP | 37 | 25 | 20 |
| 3SHP-B | 37 | 25 | 20 |
| 5SHP | 42 | 28 | 23 |
| 7SHP | 46 | 32 | 25 |
| 9SHP | 46 | 32 | 27 |
| 9SHP-B | 46 | 32 | 27 |
Dimensions, Weight & Materials
| Model | Length | Base Ø | Outlet Ø | Inlet | Weight | Bolt Slot | Base Material | Body Material |
|---|---|---|---|---|---|---|---|---|
| 3SHP | 280 mm | 168 mm | 125 mm | PM20 Quick Connect | 1.55 kg | 10 mm | Aluminum | Aluminum |
| 3SHP-B | 280 mm | 168 mm | 125 mm | G1/4 | 1.55 kg | 10 mm | Aluminum | Rubber |
| 5SHP | 520 mm | 168 mm | 155 mm | G1/4 | 1.76 kg | 10 mm | Aluminum | Aluminum |
| 7SHP | 820 mm | 168 mm | 205 mm | G1/4 | 2.35 kg | 10 mm | Aluminum | Aluminum |
| 9SHP | 1070 mm | 285 mm | 310 mm | G1" | 6.85 kg | 15 mm | Aluminum | Aluminum |
| 9SHP-B | 1070 mm | 285 mm | 310 mm | G1" | 6.85 kg | 15 mm | Aluminum | Polyethylene |
