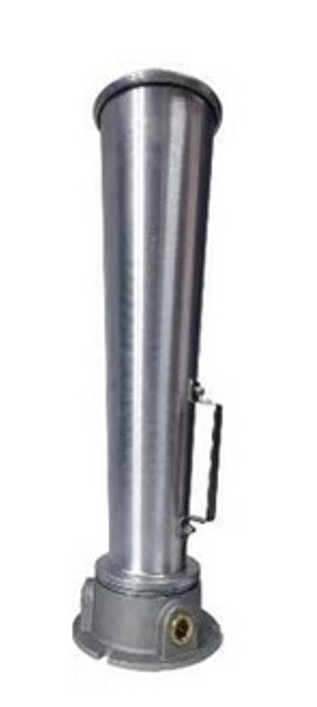

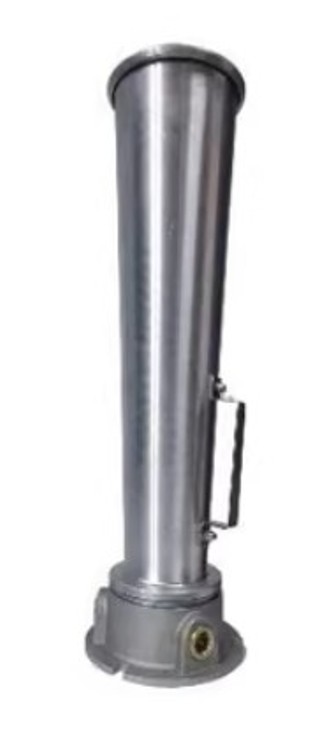

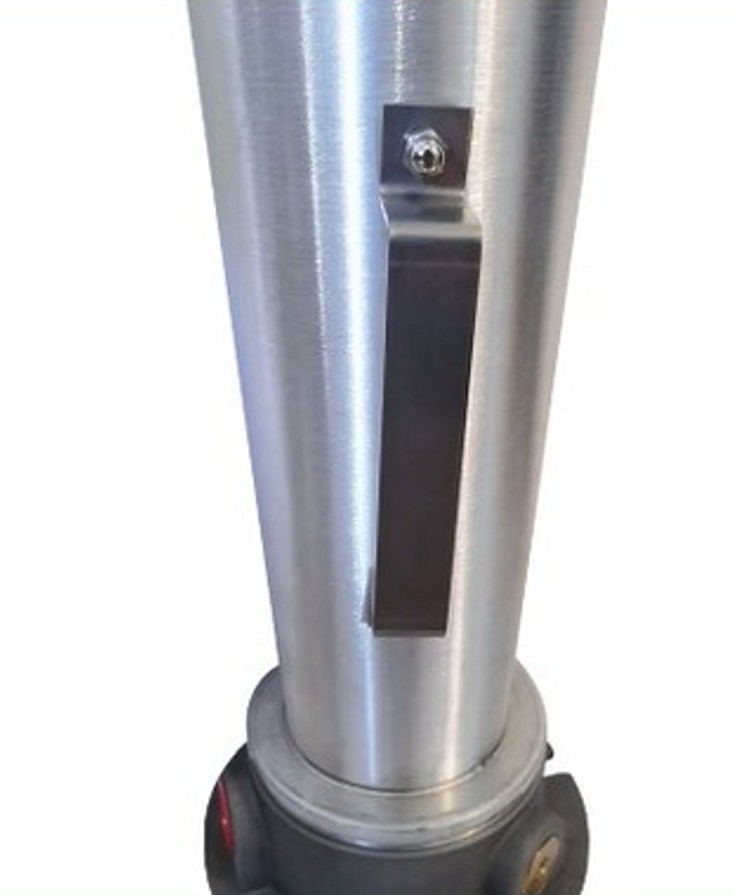

The 5SHP extends the venturi body to 520 mm for higher induction ratio and better airflow at the same air consumption as the 3SHP. It is the most popular model in the range — enough power for mid-size tanks, still light enough for single-operator handling.
1,520m³/h @ 40 psig
2,258m³/h @ 80 psig
1:42Induction ratio
1.76 kgTotal weight
Key Specifications
| Model | 5SHP |
| Air Induction Ratio | 1:42 |
| Overall Dimensions | 520 mm length |
| Inlet Pressure | 0.4 – 1.0 MPa |
| Maximum Airflow | 2,258 m³/h max (at 80 psig) |
| Air Inlet Connection | G1/4 |
| Flange / Outlet | 155 mm outlet |
| Weight | 1.76 kg |
| Body Material | Aviation-grade Aluminum / Polyethylene |
Recommended for: Chemical reactor vessels, medium ship holds, and routine confined-space ventilation.
Request Quote for 5SHP

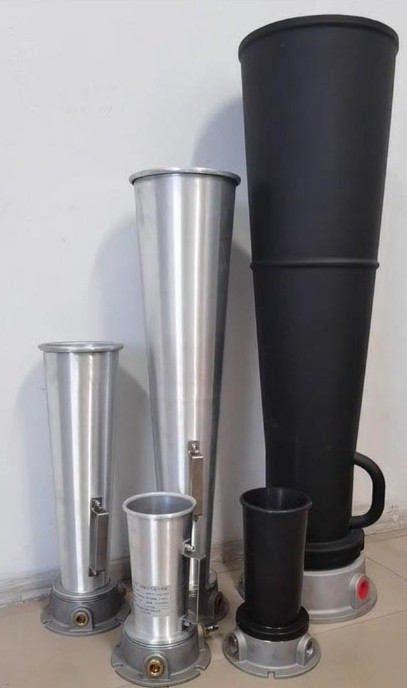

Complete Data Sheet — All SHP Models
The 5SHP row is highlighted for quick reference. All figures measured at inlet pressures of 40, 60 and 80 psig.
Total Air Output
| Model | Total Air Output at Inlet Pressure | ||
|---|---|---|---|
| 40 psig | 60 psig | 80 psig | |
| 3SHP | 810 cfm / 1375 m³/h | 988 cfm / 1678 m³/h | 1180 cfm / 2004 m³/h |
| 3SHP-B | 810 cfm / 1375 m³/h | 988 cfm / 1678 m³/h | 1180 cfm / 2004 m³/h |
| 5SHP | 908 cfm / 1520 m³/h | 1156 cfm / 1856 m³/h | 1360 cfm / 2258 m³/h |
| 7SHP | 1001 cfm / 1700 m³/h | 1267 cfm / 2151 m³/h | 1439 cfm / 2443 m³/h |
| 9SHP | 2740 cfm / 4653 m³/h | 2978 cfm / 5057 m³/h | 3329 cfm / 5653 m³/h |
| 9SHP-B | 2740 cfm / 4653 m³/h | 2978 cfm / 5057 m³/h | 3329 cfm / 5653 m³/h |
Air Consumption
| Model | Air Consumption at Inlet Pressure | ||
|---|---|---|---|
| 40 psig | 60 psig | 80 psig | |
| 3SHP | 22 scfm | 40 scfm | 58 scfm |
| 3SHP-B | 22 scfm | 40 scfm | 58 scfm |
| 5SHP | 22 scfm | 40 scfm | 58 scfm |
| 7SHP | 22 scfm | 40 scfm | 58 scfm |
| 9SHP | 68 scfm | 80 scfm | 108 scfm |
| 9SHP-B | 68 scfm | 80 scfm | 108 scfm |
Air Induction Ratio
| Model | Air Induction Ratio at Inlet Pressure | ||
|---|---|---|---|
| 40 psig | 60 psig | 80 psig | |
| 3SHP | 37 | 25 | 20 |
| 3SHP-B | 37 | 25 | 20 |
| 5SHP | 42 | 28 | 23 |
| 7SHP | 46 | 32 | 25 |
| 9SHP | 46 | 32 | 27 |
| 9SHP-B | 46 | 32 | 27 |
Dimensions, Weight & Materials
| Model | Length | Base Ø | Outlet Ø | Inlet | Weight | Bolt Slot | Base Material | Body Material |
|---|---|---|---|---|---|---|---|---|
| 3SHP | 280 mm | 168 mm | 125 mm | PM20 Quick Connect | 1.55 kg | 10 mm | Aluminum | Aluminum |
| 3SHP-B | 280 mm | 168 mm | 125 mm | G1/4 | 1.55 kg | 10 mm | Aluminum | Rubber |
| 5SHP | 520 mm | 168 mm | 155 mm | G1/4 | 1.76 kg | 10 mm | Aluminum | Aluminum |
| 7SHP | 820 mm | 168 mm | 205 mm | G1/4 | 2.35 kg | 10 mm | Aluminum | Aluminum |
| 9SHP | 1070 mm | 285 mm | 310 mm | G1" | 6.85 kg | 15 mm | Aluminum | Aluminum |
| 9SHP-B | 1070 mm | 285 mm | 310 mm | G1" | 6.85 kg | 15 mm | Aluminum | Polyethylene |
